Hemax330
21 Parameters

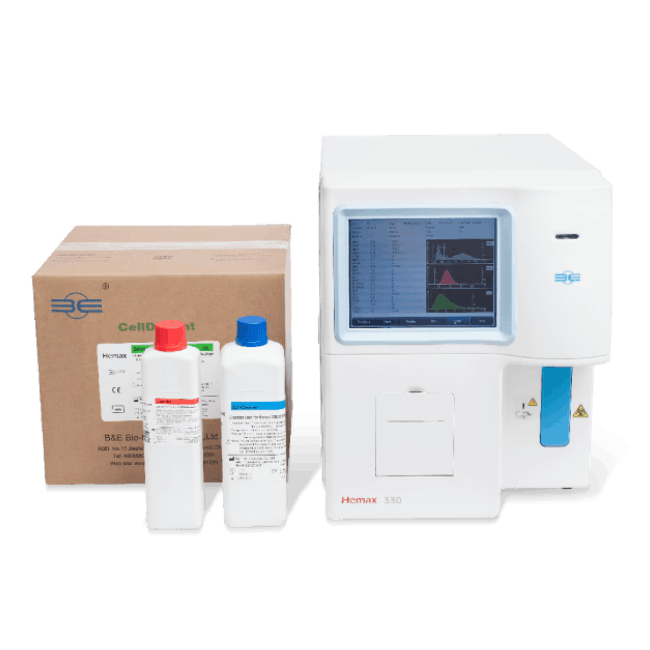

Hematology Analyzer Hemax330
WBC, RBC, HGB, MCHC, MCH, MCV, HCT, RDW-CV, RDW-SD, PLT, PDW, MPV, PCT, P-LCR, P-LCC, LYM#, LYM%, MID#, MID%, GRA#, GRA%
3 Histograms for WBC, RBC, PLT
Technical Specification
| Technology | ElectricaI resistance for counting WBC, RBC and PLT |
| Sample Volume | Whole BIood 9.8μL, Pre-diluted BIood 20μL, PeripheraI BIood 9.8μL |
| Throughput | Up to 60 samples per hour |
| Carryover | WBC/RBC/HGB < 0.5%, PLT < 1.0% |
| Accuracy (CV) | -- WBC ≤ 2.0% -- RBC ≤ 1.5% -- HGB ≤ 1.5% -- MCV ≤ 0.4% -- PLT ≤ 4% |
| Operating Environment | 15°C-35°C, Humidity ≤ 80% |
| Alarms | Error Messages |
| Input/Output | RS-232, USB, LAN, Keyboard and Mouse Interface |
| Printout | Thermal printer, 55mm width paper, Various printout formats |
| External printer | optionaI |
| Power Requirement | a.c.110V-220V, 50/60Hz |
| Dimension | 478mm(L)X330mm(W)×395mm(H) |
